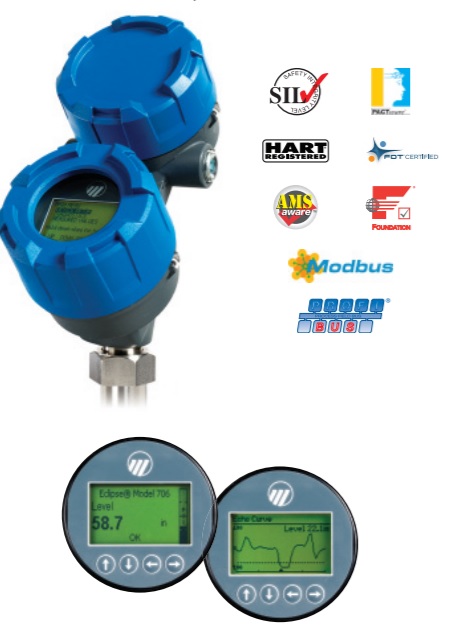

The Eclipse Model 706 Transmitter is loop-powered, 24 VDC level transmitter that is based upon the proven and accepted technology of Guided Wave Radar

Encompassing a number of significant engineering accomplishments, the Eclipse Model 706 Transmitter is designed to provide measurement performance well beyond that of many of the more traditional technologies.

Utilizing patented “diode switching” technology, along with the most comprehensive probe offering on the market, this single transmitter can be used in a wide variety of applications ranging from very light hydrocarbons to water-based media.The innovative angled, dual compartment enclosure is now a common sight in the industry. This enclosure, first brought to the industry by Magnetrol® in 1998, is angled to maximize ease of wiring, configuration, and viewing of the versatile graphic LCD display.

One universal Model 706 transmitter can be used and interchanged with all probe types, and offers enhanced reliability as it is certified for use in critical SIL 2 hardware safety loops. With the use of a unique adapter, the model706 transmitter can even operate with older Model 705 probes.The ECLIPSE Model 706 supports both the FDT/DTM and Enhanced DD (EDDL) standards, which allow viewing of valuable configuration and diagnostic information such as the echo curve in tools such as PACTware ™, AMS Device Manager, and various HART® Field Communicators

Technology of Eclipse Model 706 Wave Radar Level Transmitter
PRINCIPLE OF OPERATION
ECLIPSE Guided Wave Radar is based upon the technology of TDR (Time Domain Reflectometry). TDR utilizes pulses of electromagnetic energy transmitted down a wave guide (probe). When a pulse reaches a surface that has a higher dielectric constant than the air (εr = 1) in which it is traveling, a portion of the pulse is reflected. The transit time of the pulse is then measured via high speed timing circuitry that provides an accurate measure of the liquid (or solids) level. The amplitude of the reflection depends on the dielectric constant of the product. The higher thedielectric constant, the larger is the reflection.



INTERFACE MEASUREMENT
The ECLIPSE Model 706 is capable of measuring both an upper liquid level and an interface liquid level. As only a portion of the pulse is reflected from a low dielectric upper surface, some of the transmitted energy continues down the GWR probe through the upper liquid. The remaining initial pulse is again reflected when it reaches the higher dielectric lower liquid. It is required that the upper liquid has a dielectric constant less than 10, and the lower liquid has a dielectric constant greater than 15. A typical interface application would be oil over water, with the upper layer of oil being non-conductive (εr ≈ 2.0), and the lower layer of water being very conductive (εr ≈ 80). The thickness of the upper layer could be as small as 2″ (50 mm) while the maximum upper layer is limited to the length of the GWR probe.



Features of Eclipse Model 706 Wave Radar Level Transmitter
       - Multivariable, two-wire, 24 VDC loop-powered transmitter for level, interface, volume, or flow.
       - Unique adapter allows operation with Model 705 probes
       - Diode switching technology offers best-in-class signal strength and signal-to noise ratio (SNR) resulting in enhanced capability in difficult low dielectric applications.
       - Level measurement not affected by changing media characteristics.
       - No need to move levels for calibration.
       - Overfill Capable probes allow for “true level” measurement all the way up to the process seal, without the need for special algorithms.
       - 4-button keypad and graphic LCD display allow for convenient viewing of configuration parameters and echo curve.
       - Proactive diagnostics advise not only what is wrong, but also offer troubleshooting tips.
       - Nine common tank shapes for volumetric output.
       - 30-point custom strapping table for uncommonlyshaped tanks.
       - Two standard flumes and four standard weirs of various sizes for flow measurement.
       - Generic flow equation for non-standard channels.
       - 360° rotatable housing can be separated from probe without depressurizing the vessel.
       - Probe designs up to +850 °F/6250 psi (+450 °C/431 bar).
       - Saturated steam applications up to 3000 psi (207 bar),+800 °F (+425 °C) when installed in side-mounted chamber.
       - Cryogenic applications down to -320 °F (-196 °C).
       - Transmitter can be remote-mounted up to 12 feet (3.6 m) away from the probe.
       - SIL certification allows use in SIL 2/3 Loops
       - No moving parts.
       - FOUNDATION fieldbus™, PROFIBUS PA and Modbus digital outputs.
       - Lloyd’s Register steam drum approval

Applications of Eclipse Model 706 Wave Radar Level Transmitter
MEDIA: Liquids, solids, or slurries; hydrocarbons to waterbased media (Dielectric Constant εr = 1.2–100)
VESSELS : Most process or storage vessels up to rated probe temperature and pressure.
CONDITIONS : All level measurement and control applications including process conditions exhibiting visible vapors, foam, surface agitation, bubbling or boiling, high fill/empty rates, low level and varying dielectric media or specific gravity
